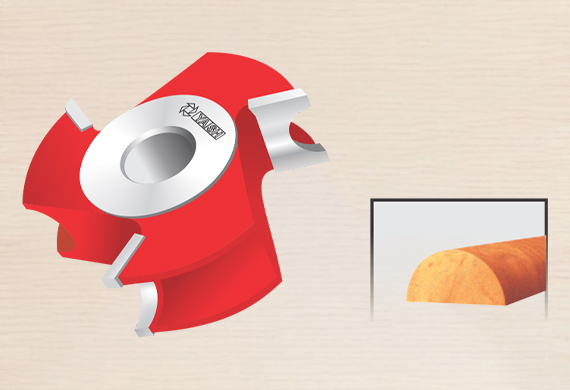

Bead Cutter
Carbide Tipped Profile Making Cutters
Our Bead Cutter Material Details are Diameter: 108mm, Bore: 25.4mm, Teeth: 3 Teeth, Etc. Bead Cutter is manufactured by Yash Tooling System In Ahmedabad, India.
Specifications
PRODUCTS DESCRIPTION
| CODE | Moulding Size (mm) | Cutter Thickness |
|---|---|---|
| 1104 | 12x5 | 19 |
| 1105 | 12x7 | 19 |
| 1106 | 15x7 | 25 |
| 1107 | 18x10 | 25 |
| 1108 A | 19x6 | 25 |
| 1108 | 19x10 | 25 |
| 1109 A | 20x8 | 30 |
| 1109 | 20x10 | 30 |
| 1110 A | 22 x6 | 32 |
| 1110 | 22x8 | 32 |
| 1111 | 22x10 | 32 |
| 1112 A | 25x8 | 32 |
| CODE | Moulding Size (mm) | Cutter Thickness |
|---|---|---|
| 1112 | 25x10 | 32 |
| 1113 | 25x12 | 32 |
| 1114 | 28x12 | 38 |
| 1115-A | 32x8 | 38 |
| 1115 | 32x10 | 38 |
| 1116 | 32x15 | 38 |
| 1117 | 36x12 | 45 |
| 1117-A | 38x8 | 45 |
| 1117-B | 38x10 | 45 |
| 1117 C | 45x6 | 50 |
| 1117-D | 45x10 | 50 |
