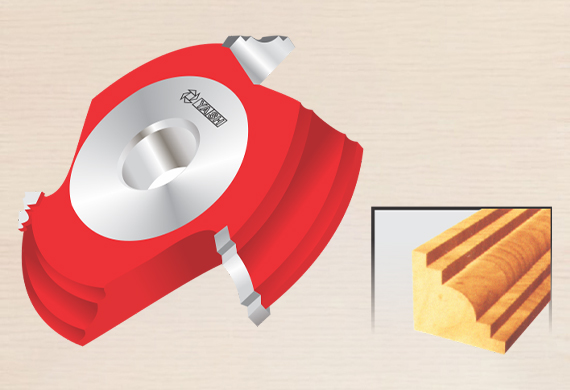

Double Fillet Cove Frame Cutter
Carbide Tipped Profile Making Cutters
Our Double Fillet Cove Frame Cutter Material Details are Diameter: 125mm, Bore: 25.4mm, Teeth: 3 Teeth, Etc. Double Fillet Cove Frame Cutter is manufactured by Yash Tooling System in Ahmedabad, India.
Specifications
PRODUCTS DESCRIPTION
| CODE | Moulding Size (mm) | Cutter Thickness |
|---|---|---|
| 2001 | 15x15 | 12 |
| 2002 | 18x18 | 15 |
| 2003 | 20x20 | 17 |
| 2004 | 22x22 | 19 |
| 2005 | 25x25 | 22 |
| 2006 | 28x15 | 25 |
| 2007 | 28x28 | 25 |
| 2008 | 32x18 | 28 |
| 2009 | 32x32 | 28 |
| 2010 | 36x15 | 32 |
| 2011 | 36x18 | 32 |
| 2012 | 36x22 | 32 |
| 2013 | 36x28 | 32 |
| 2014 | 36x36 | 32 |
| 2014-A | 44x44 | 38 |
