PCD Raised Panel Cutter Head
YTP 20
Pcd Panel Cutter
Application: These tools produce precise and clean work results when the panel is raised in solid wood. To create furniture, door panels, cotted ceilings, and paneling. It can be cut across and with the grain in hardwoods, which is also useful in resinous and MDF-type boards. You can resharpen the blades easily and quickly. The carbide tips are German standards and of 5 mm thickness for longer life.
Technical Details:
PRODUCTS DESCRIPTION
| ORDER CODE | DIA | MOULDOING SIZE | BORE | TEETH |
|---|---|---|---|---|

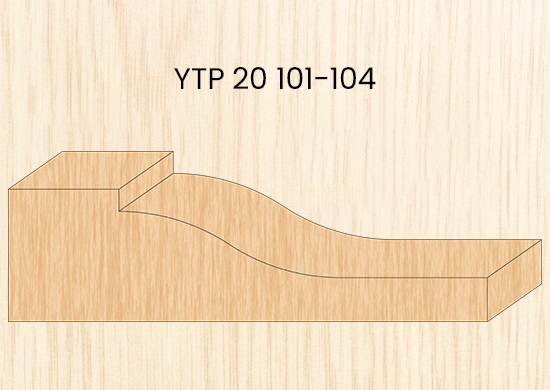

| YTP 20 101 / RH | 175 | 40 x 18 | 30/ 31.75/ 35 | 4 |
| YTP 20 102 / LH | 175 | 40 x 18 | 30/ 31.75/ 35 | 4 |
| YTP 20 103 / RH | 175 | 50 x 18 | 30/ 31.75/ 35 | 4 |
| YTP 20 104 / LH | 175 | 50 x 18 | 30/ 31.75/ 35 | 4 |
| YTP 20 105 / RH | 175 | 40 x 18 | 30/ 31.75/ 35 | 4 |
| YTP 20 106 / LH | 175 | 40 x 18 | 30/ 31.75/ 35 | 4 |
| YTP 20 107 / RH | 175 | 50 x 18 | 30/ 31.75/ 35 | 4 |
| YTP 20 108 / LH | 175 | 50 x 18 | 30/ 31.75/ 35 | 4 |
| YTB 20 109 / RH | 175 | 40 x 18 | 30/ 31.75/ 35 | 4 |
| YTB 20 110 / LH | 175 | 40 x 18 | 30/ 31.75/ 35 | 4 |
| YTB 20 111 / RH | 175 | 50 x 18 | 30/ 31.75/ 35 | 4 |
| YTB 20 112 / LH | 175 | 50 x 18 | 30/ 31.75/ 35 | 4 |
| YTB 20 113 / RH | 175 | 40 x 18 | 30/ 31.75/ 35 | 4 |
| YTB 20 114 / LH | 175 | 40 x 18 | 30/ 31.75/ 35 | 4 |
| YTB 20 115 / RH | 175 | 50 x 18 | 30/ 31.75/ 35 | 4 |
| YTB 20 116 / LH | 175 | 50 x 18 | 30/ 31.75/ 35 | 4 |
| YTB 20 125 / RH | 175 | 40 x 18 | 30/ 31.75/ 35 | 4 |
| YTB 20 126 / LH | 175 | 40 x 18 | 30/ 31.75/ 35 | 4 |
| YTB 20 127 / RH | 175 | 50 x 18 | 30/ 31.75/ 35 | 4 |
| YTB 20 128 / LH | 175 | 50 x 18 | 30/ 31.75/ 35 | 4 |
