Solid Carbide
Ball Nose
Solid Carbide Tools

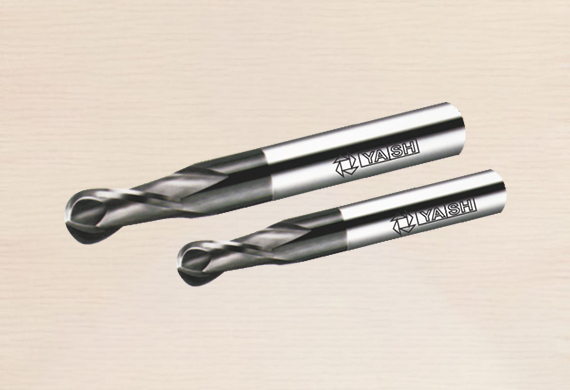

Solid Carbide Ball Nose Used for milling contoured surfaces, slotting, and pocketing. A ball end mill is constructed of a round cutting edge and used in the 3d machining of the wood and Laminated Plywood, Ball Nose is used on workpieces with complex surfaces.
Specifications
PRODUCTS DESCRIPTION
| CODE | Dia (mm) | CL | Total Length | Shank |
|---|---|---|---|---|
| BN 1 | 1 | 4 | 38 | 3 |
| BN 1A | 1.5 | 6 | 39 | 3 |
| BN 2 | 2 | 8 | 40 | 3 |
| BN 3 | 3 | 15 | 38 | 3 |
| BN 3A | 3 | 30 | 75 | 3 |
| BN3AB | 3 | 50 | 100 | 3 |
| BN 4 | 4 | 20 | 50 | 4 |
| BN 4A | 4 | 40 | 75 | 4 |
| BN 4B | 4 | 50 | 100 | 4 |
| BN 5 | 5 | 22 | 50 | 5 |
| BN 5A | 5 | 40 | 75 | 5 |
| BN 5B | 5 | 50 | 100 | 5 |
| BN 6 | 6 | 25 | 50 | 6 |
| BN 6A | 6 | 40 | 75 | 6 |
| CODE | Dia (mm) | CL | Total Length | Shank |
|---|---|---|---|---|
| BN 6B | 6 | 50 | 100 | 6 |
| BN 8 | 8 | 25 | 60 | 8 |
| BN 8A | 8 | 40 | 75 | 8 |
| BN 8B | 8 | 50 | 100 | 8 |
| BN 10 | 10 | 30 | 75 | 10 |
| BN10A | 10 | 50 | 100 | 10 |
| BN10B | 10 | 75 | 150 | 10 |
| BN 12 | 12 | 30 | 75 | 12 |
| BN12A | 12 | 40 | 75 | 12 |
| BN12B | 12 | 50 | 100 | 12 |
| BN12C | 12 | 60 | 150 | 12 |
| BN12D | 12 | 75 | 150 | 12 |
| BN 14 | 14 | 50 | 100 | 14 |
| BN 16 | 16 | 50 | 100 | 16 |
