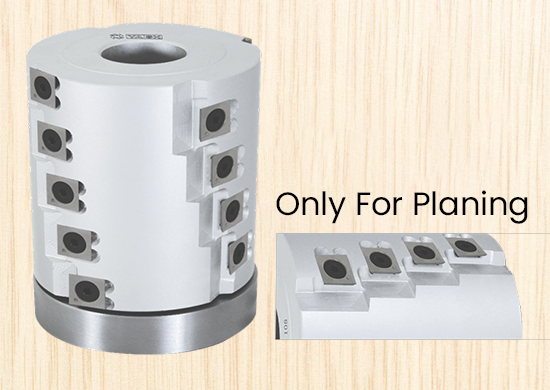

Spiral Planning Roll For Spindel Moulder (Replaceable)
YTR 6
Planning Cutter Replaceable.
Spiral Aluminum Cutter Head for Planning It’s Equipped with 14 x 14 x 2mm Knives with 4cutting edges. It is particularly suitable for excellent finishing. Increased productivity & the tool produces less noise.
Technical Details
PRODUCTS DESCRIPTION
| ORDER CODE | DIA | THICKNESS | BORE |
|---|---|---|---|
| YTR 6 101 | 60 | 50 | 30/ 40 |
| YTR 6 102 | 60 | 60 | 30/ 40 |
| YTR 6 103 | 60 | 80 | 30/ 40 |
| YTR 6 104 | 60 | 100 | 30/ 40 |
| YTR 6 105 | 80 | 50 | 30/ 40 |
| YTR 6 106 | 80 | 60 | 30/ 40 |
| YTR 6 107 | 80 | 80 | 30/ 40 |
| YTR 6 108 | 80 | 100 | 30/ 40 |
| YTR 6 109 | 100 | 50 | 30/ 40 |
| YTR 6 110 | 100 | 60 | 30/ 40 |
| YTR 6111 | 100 | 80 | 30/ 40 |
| YTR 6 112 | 100 | 100 | 30/ 40 |
| YTR 6113 | 100 | 130 | 30/ 40 |
SPARE
| KNIVES | SCREW |
|---|---|
| 14X14X2 | M5X6C |
| 14X14X2 | M5X6C |
| 14X14X2 | M5X6C |
| 14X14X2 | M5X6C |
| 14X14X2 | M5X10C |
| 14X14X2 | M5X10C |
| 14X14X2 | M5X10C |
| 14X14X2 | M5X10C |
| 14X14X2 | M5X10C |
| 14X14X2 | M5X10C |
| 14X14X2 | M5X10C |
| 14X14X2 | M5X10C |
| 14X14X2 | M5X10C |
