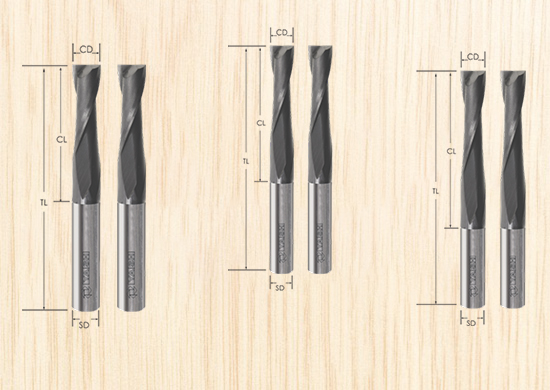

Two Flute Solid Carbide Spiral End Mill
YTS 1
2&4 Flute Solid Carbide End-mill & Ball Nose.
Application: Use for Cutting, Grooving, Sizing, and Nesting on CNC. 2 Flute Solid Carbide End Mill, High-Performance Chip Board, Laminated Plywood, MDF, Melamine, Plastic etc.
Technical Details:
PRODUCTS DESCRIPTION

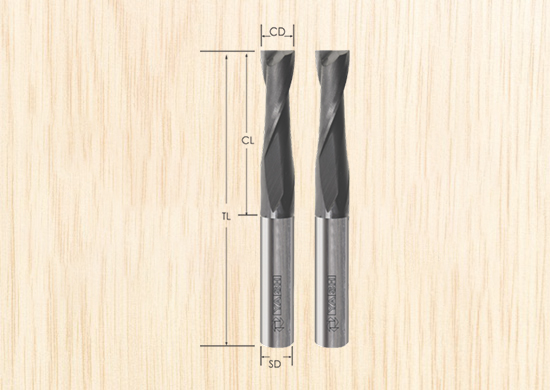

Spiral Standard End Mill
| ORDER CODE | DIA | CUTTING LENGTH | TOTAL LENGTH | SHANK |
|---|---|---|---|---|
| YTS 1 101 | 1 | 5 | 38 | 3 |
| YTS 1 102 | 1.5 | 6 | 38 | 3 |
| YTS 1 103 | 2 | 8 | 38 | 3 |
| YTS 1 104 | 3 | 15 | 38 | 3 |
| YTS 1 105 | 4 | 22 | 45 | 4 |
| YTS 1 106 | 5 | 22 | 50 | 5 |
| YTS 1 107 | 6 | 25 | 50 | 6 |
| YTS 1 108 | 8 | 25 | 60 | 8 |
| YTS 1 109 | 10 | 30 | 75 | 10 |
| YTS 1 110 | 12 | 30 | 75 | 12 |
| YTS 1 111 | 14 | 32 | 90 | 14 |
| YTS 1 112 | 16 | 45 | 100 | 16 |

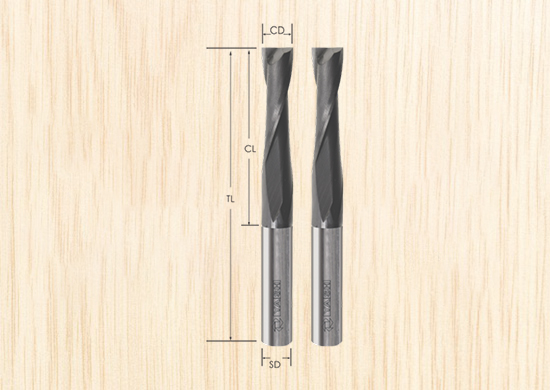

Spiral Long End Mill
| ORDER CODE | DIA | CUTTING LENGTH | TOTAL LENGTH | SHANK |
|---|---|---|---|---|
| YTS 1 113 | 3 | 35 | 70 | 3 |
| YTS 1 114 | 4 | 35 | 70 | 4 |
| YTS 1 115 | 5 | 40 | 70 | 5 |
| YTS 1 116 | 6 | 32 | 60 | 6 |
| YTS 1 117 | 6 | 40 | 70 | 6 |
| YTS 1 118 | 8 | 40 | 75 | 8 |

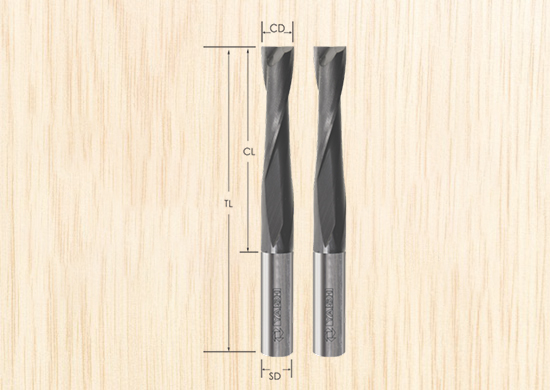

Spiral Extra Long End Mill
| ORDER CODE | DIA | CUTTING LENGTH | TOTAL LENGTH | SHANK |
|---|---|---|---|---|
| YTS 1 119 | 3 | 50 | 100 | 3 |
| YTS 1 120 | 4 | 50 | 100 | 4 |
| YTS 1 121 | 5 | 50 | 100 | 5 |
| YTS 1 122 | 6 | 50 | 100 | 6 |
| YTS 1 123 | 6 | 75 | 100 | 6 |
| YTS 1 124 | 8 | 50 | 100 | 6 |
| YTS 1 125 | 8 | 75 | 150 | 8 |
| YTS 1 126 | 10 | 50 | 100 | 8 |
| YTS 1 127 | 10 | 75 | 150 | 10 |
| YTS 1 128 | 12 | 50 | 100 | 12 |
| YTS 1 129 | 12 | 75 | 150 | 12 |
